Dilution Fridge Model I

Supplier :

Simple, single-person sample exchange without a ladder, wiring bundles aren’t flexed by gravity during exchange

By creating the world’s most reliable dilution refrigerator, ZPC customers can focus on developing their quantum technologies, instead of operating their refrigerators.

ABOUT

SYSTEM FEATURES

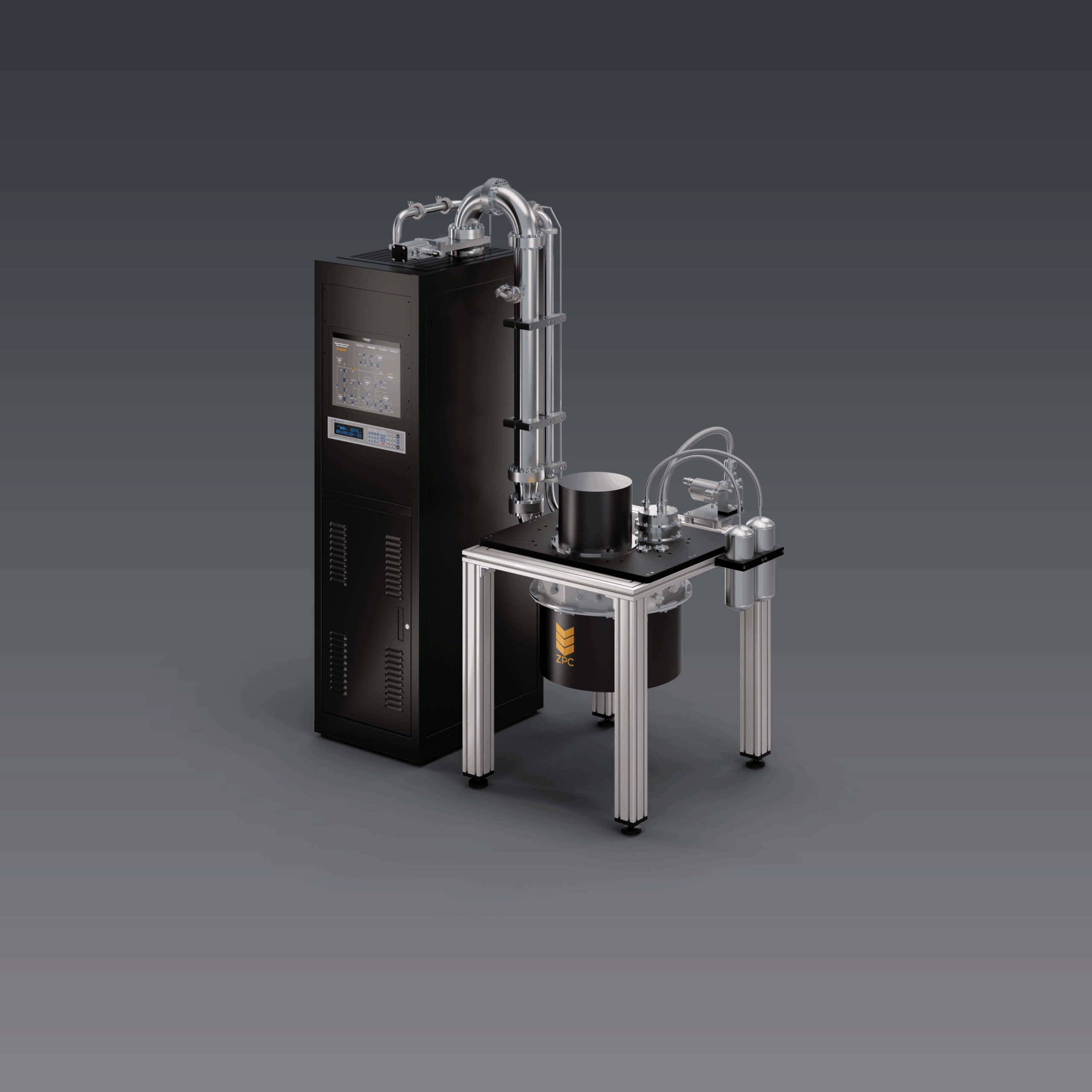

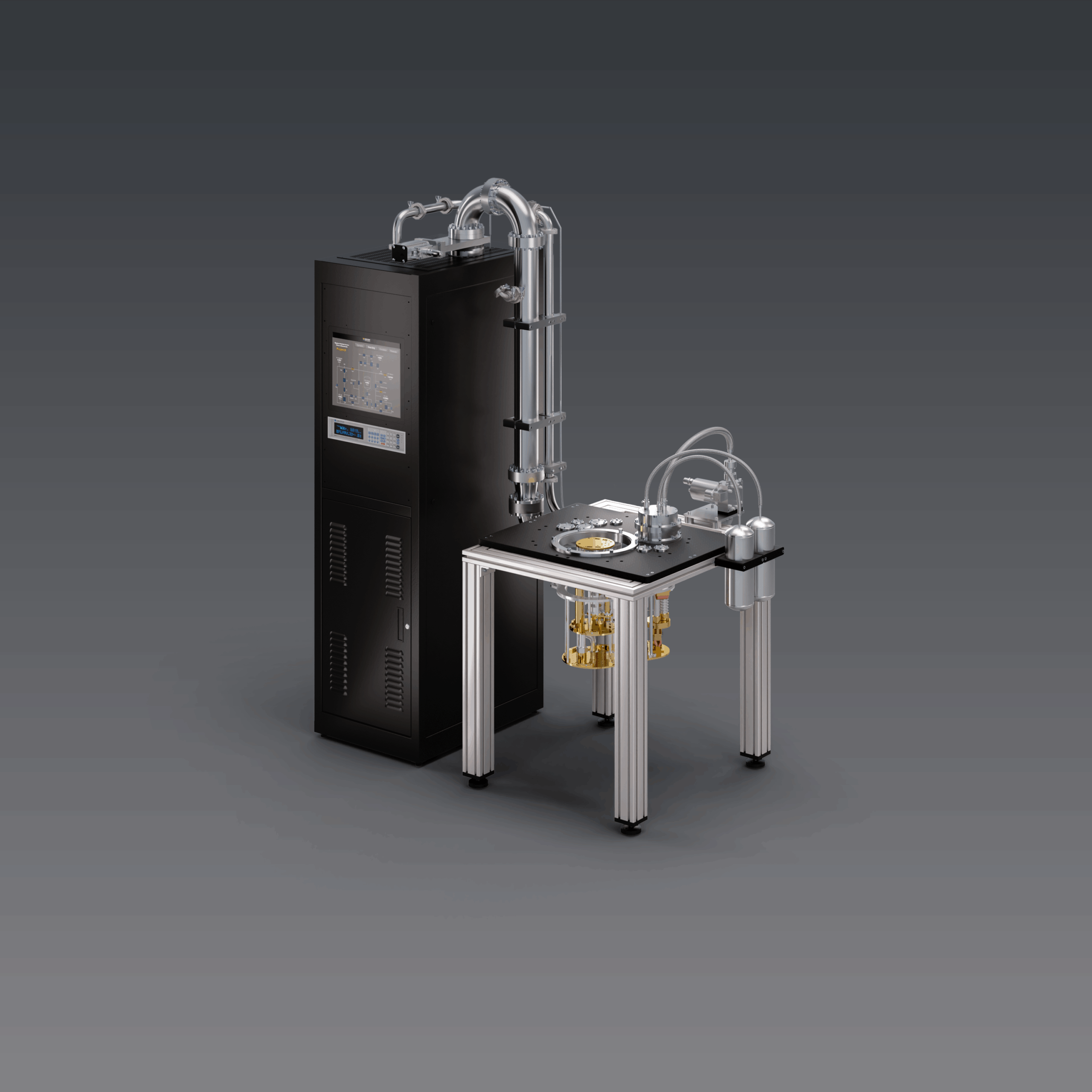

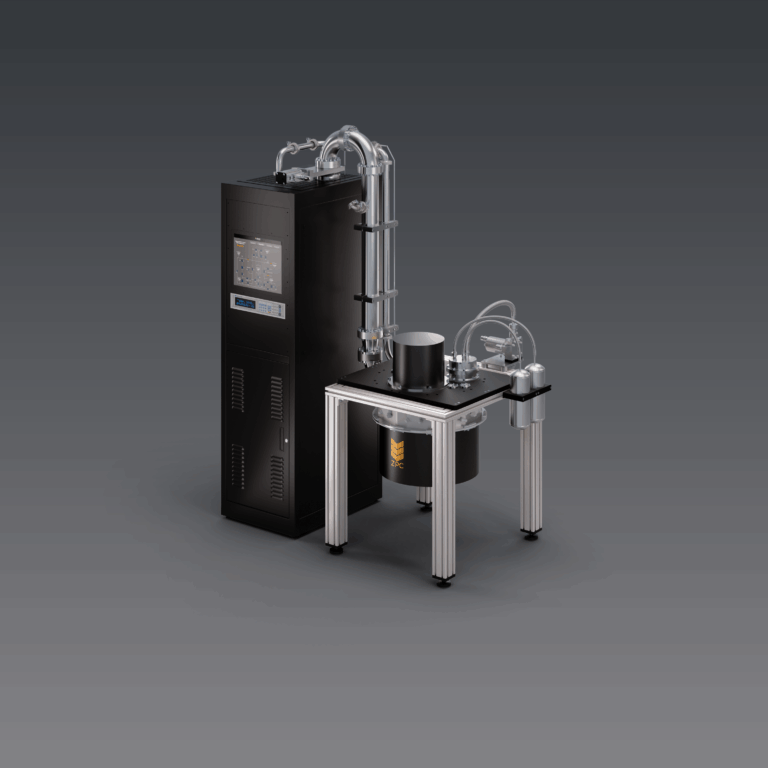

Inverted, benchtop geometry

The mixing-chamber plate is at bench height inside a 50 × 75 cm frame, so you work on your device exactly where you would on an optical table.
This layout lets the entire machine, including its compact gas-handling rack, fit in 1.34 m² of floor space.

Robust cryostat build

All-metal seals, laser-welded joints, keep leaks and indium creep at bay.
The MXC plate is galvanically isolated from the outer frame, cutting ground-loop noise for qubit and detector work.

One-button touchscreen + open Python API

Trainees can run the fridge safely on day one, while power users script automated cooldowns, logging and device bias ramps.

Best-in-class warranty and service envelope

48-month parts warranty! Longest baseline cover in the dilution fridge market.
Lowers the cost of risk, common suppliers stop at 24–36 months.

Optics-ready & wiring-dense

Up to five 50 mm view-ports, fibre feed-throughs, 48 RF + 120 DC +30 fiber optic lines in a 150 mm diameter, 195 mm tall sample space

Extended-life, LN₂-free cold trap

The extended-life cold trap, integrated into the 45 K plate, eliminates the need for frequent monitoring and refilling of external liquid nitrogen dewars, making maintenance less of a hassle

PRODUCT

SPECIFICATIONS

MODEL I

Compact footprint : 1.34 m2 Including the GHS, customizable
Base temperature < 20 mK
Cooldown time < 30 hours
Cooling power < 250 μW at 100 mK (upgradeable to 400 μW)
Sample size 150 mm diameter 195 mm vertical space

OTHER

OPTIONS

Single Axis magnets:
0.5 T to 12 T superconducting, cryogen-free magnets
Vector Magnets:
2-axis and 3-axis vector magnets.
0.5 T to 9 T per axis

Up to five(5) optical windows with direct line-of-sight access to the experiment stage
Maximum diameter: 4 inches / 100 mm
Compatible with cryo-objectives

Actuation pressure:
Tunable. Nominal operation at 5-10 bar Closed-state superfluid leak rate:
Guaranteed: better than 1×10-9 mbar⋅L/s at 1.5 K
Expected: below 1.3×10-10 mbar⋅L/s at 1.5 K

How and Why

Cryogenic System Designs for Quantum Applications

Superconducting-qubit and spin-qubit device development

48 RF + 120 DC native wiring capacity, galvanic-isolated plates that cut 1/f noise, and an open Python API make it easy to script qubit bias sweeps or flux tuning.

2

Quantum photonics & optomechanics at mK

Five 50 mm line-of-sight windows plus fibre feed-throughs let you drive nanophotonic cavities or levitated optomechanical resonators

3

Millikelvin scanning-probe or nanomechanics

Bench-height MXC plate eliminates the long, flexible insert that amplifies vibration; the remote-motor PT kit measures nm scale p-p at the sample, suiting mK STM, torque magnetometry, or nanobeam resonators

High-field quantum-materials transport

Optional 9 T solenoid / 1 T vector magnet ships pre-wired, the 150 mm × 195 mm space leaves room for rotatable probe stations or double-angle wiring towers used in twisted-bilayer graphene and fractional-QH studies

Topological-superconductor / Majorana nanowire transport

Model I comfortably reaches < 20 mK with a 9 T solenoid; the day-scale cooldown/warm-up is fine for gate-map turnover while keeping He-3 costs minimal

reviews

they liked it

Zero Point Cryogenics stems from over two decades of low-temperature research led by Dr. John P. Davis. As a tenured professor at the University of Alberta, Dr. Davis has extensively explored superfluids in the quantum realm and taught thermodynamics, equipping him with deep knowledge of dilution refrigerator technology. His vision was clear: assemble a team capable of redefining the dilution refrigerator market.

Today, Zero Point Cryogenics not only meets the increasing demand for advanced dilution refrigerators essential for quantum

technology but also pioneers innovations that enhance their usability and longevity. Our mission is twofold: empower our partners in industry, academia, and government with superior cryogenic solutions and lead the global market in developing the most dependable and user-friendly cryogenic equipment.

Proudly based in Edmonton, Canada, Zero Point Cryogenics commits to advancing quantum technology research through cryogenics, ensuring our clients can focus on groundbreaking discoveries without compromise.
