Cryogenics
PSM-4K Series
Supplier :
- Base temperature < 4K
- Unique probe arm X-Y-Z-R
- Helium closed-loop

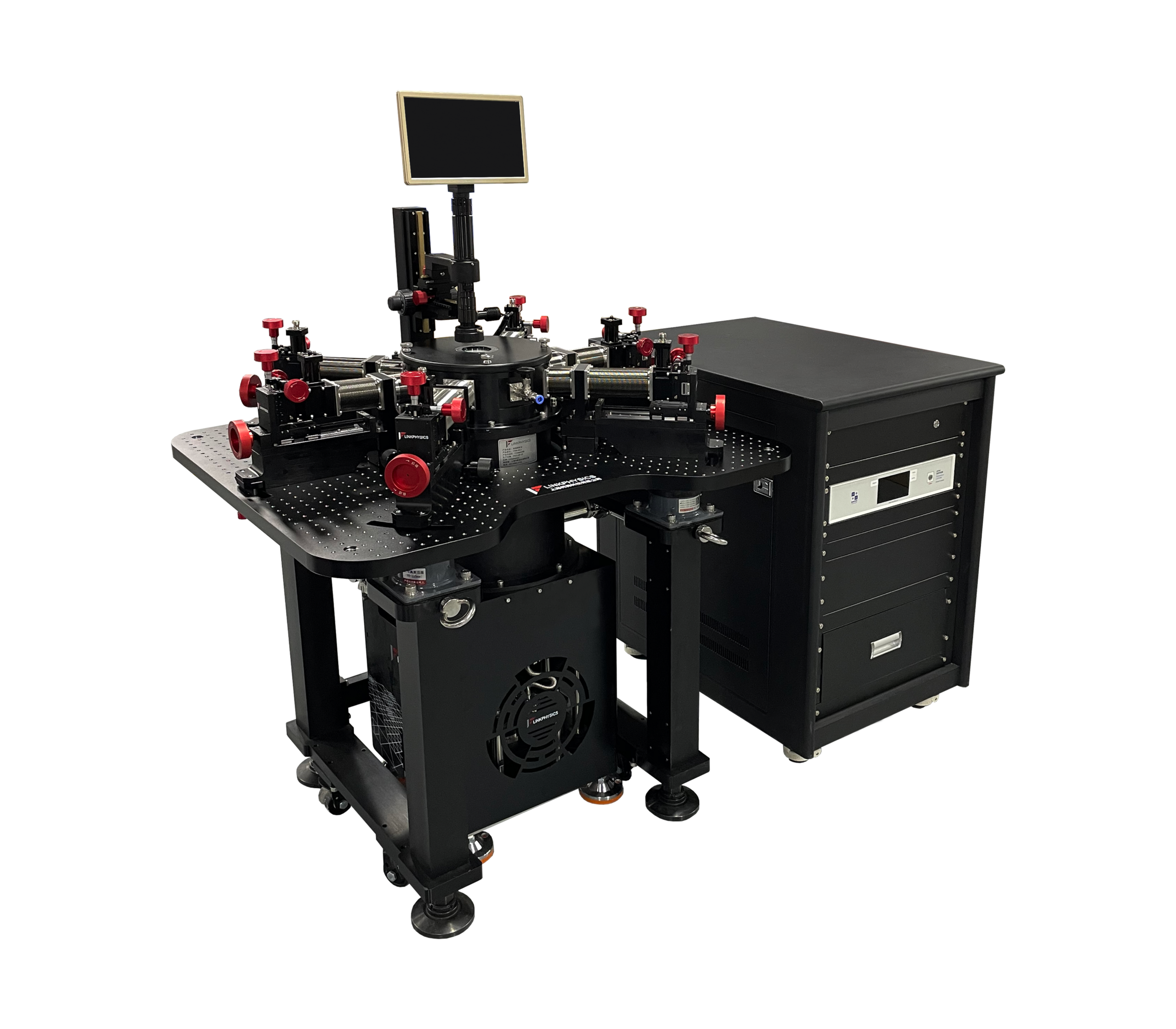

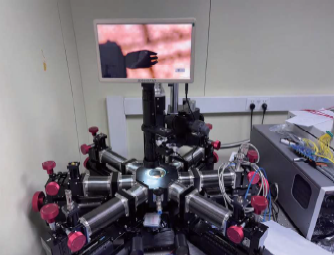

PSM-4K series cryogenic probe station is a closed-cycle cryogenic probe station, compact and low vibration design, can provide a <4K-350K high and low temperature vacuum test
Sole manufacturer capable of measuring 100mm large samples, whereas our competitors are limited to a maximum measurement area of 32mm.
ABOUT
SYSTEM FEATURES
Capable of measuring 100mm large samples
This capability is made possible by the revolutionary design of our probe arm. Unlike traditional arms limited to X, Y, and Z-axis adjustments, we have innovatively integrated an R-axis (in-plane rotation) function.
The best OEM components
Sumitomo cryocooler, Pfeiffer pumping system, and GGB Industries probes, combined with our state-of-the-art expertise in cryogenic design and machining.
No liquid helium consumption is required
The PSM-4K is our premium cryogen-free, closed-cycle probe station, ideal for users who want the convenience of cryogen-free operation. With a self-contained closed-cycle refrigerator (CCR), it reaches cryogenic temperatures autonomously, removing the need for ongoing monitoring by the researcher.
Focused on innovation and flexibility

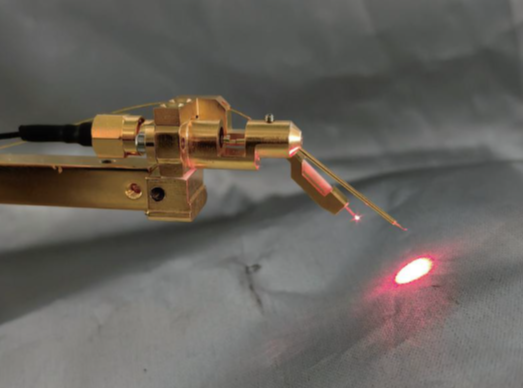

Temperature difference sample holder; R-axis in-plane rotation function; DC probes and optical fibers can be installed simultaneously on same probe arm. 100mm full surface probing…

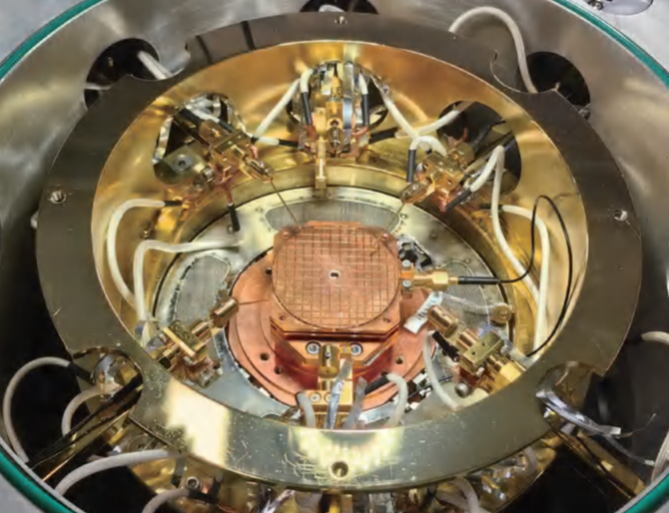

Low Vibrations on sample stage
Provide a horizontal and vibrationdamping
support platform. Gravity vibration damping & air flotation vibration damping pads. Sample Stage vibration < 1µ p-p xyz (frequency range covers 0 to 100KHz)
Up to 6 probe arms
The types of probe arms can be freely combined;
· Four DC probe arms + two optical fiber arms, four DC arms + two 67GHz microwave
arms, three DC arms + two microwave arms + one optical fiber arm, etc. can be selected.
PRODUCT
SPECIFICATIONS
MODEL I
- Temperature range : 4.5K-350K
- Temperature control stability : ±50mK
- Vibrate ＜1μms
- Size sample holder : 2 & 4 inches
- Probe arms number : 4 (standard), up to 6 can be equipped
- Type : DC probe arm (standard), Microwave probe arm, fiber optic probe arm, thermocouple probe arm
- Connectors and cables : Triple coaxial connector+ultra-thin coaxial low-temperature cable
- Leakage current : 100fA@1V In a vacuum environment
- Displacement range : X+/- 50mm,Y+/- 12.5mm Z +/-6.5mm R+/-7.5°
OTHER
OPTIONS

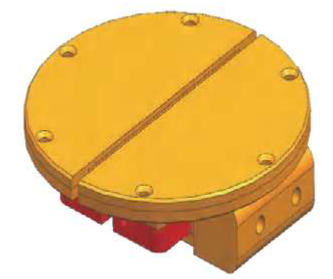

Thermodynamics Sample Stand:
The sample holder is designed with zoning, and the two zones can achieve a temperature difference
of 60K.
The surface of the sample holder is grounded

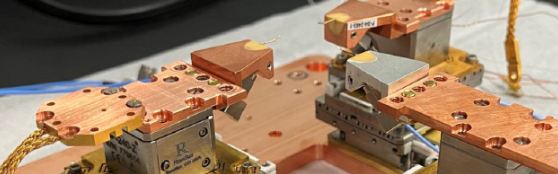

Integration of cryogenic nanopositioners into the vacuum chamber, enabling ultra-high-resolution optical alignments while using manual probes for RF and DC measurements.

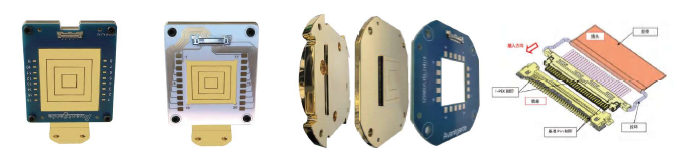

Multi electrode sample holder:
The PSM-4K series low-temperature probe station provides a multi electrode sample holder option for sample testing, which can be quickly disassembled and
increases the flexibility of the system.
How and Why
Cryogenic System Designs for Quantum Applications
1
Low-temperature electrical characterization of semiconductor devices
2
Superconducting electronics and detectors
3
Cryogenic RF and microwave probing
4
Electro-optic characterization of SOI photonic components at cryo
5
Cryogenic opto-electronic
reviews
photo gallery
We searched for a long time, across three continents, for a manufacturer that truly had something to bring to researchers in Europe.
The cryogenic probe-station offering available on the market needed to be renewed, and researchers needed more competitive pricing for this type of system.
With LinkPhysics, Qnity has found the perfect challenger: undeniable innovations, the best OEM components, and ultra-affordable prices.
Above all, it addresses one of the main pain points expressed by researchers: the ability to probe larger-diameter wafers at cryogenic temperatures using a manual, laboratory probe station.
They’ve done it – we’ve seen it – and we’re going to tell everyone.
