Cryogenics

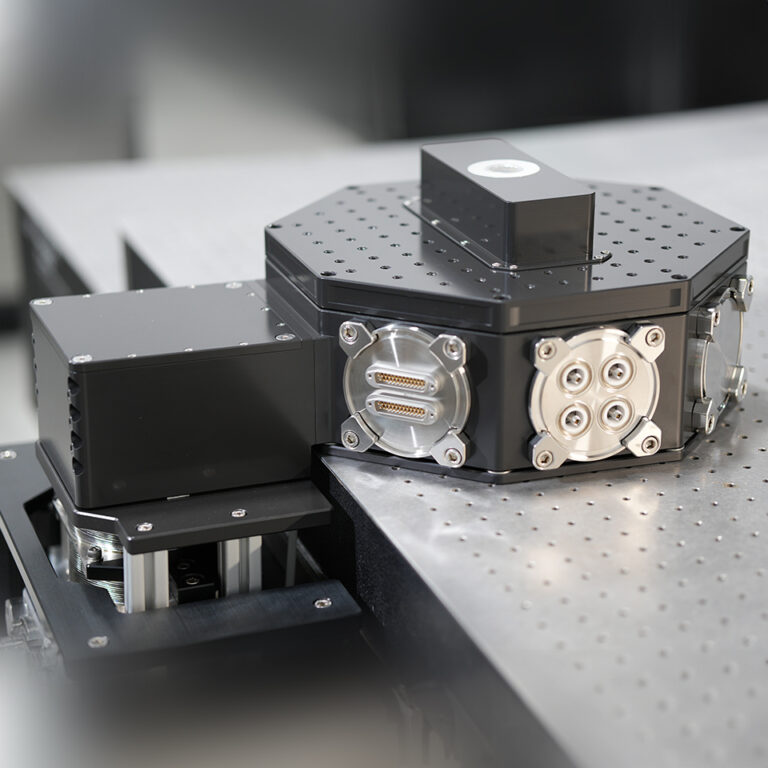

SideKick
Supplier :
- Ultra-High Vacuum.
- Low Vibrations.
- Huge sample space, low footprint
The SideKick offer huge sample space under UHV, with surfaces outgassed before cool-down. Avoiding sample and windows getting covered with ice and allow to stay cold longer.

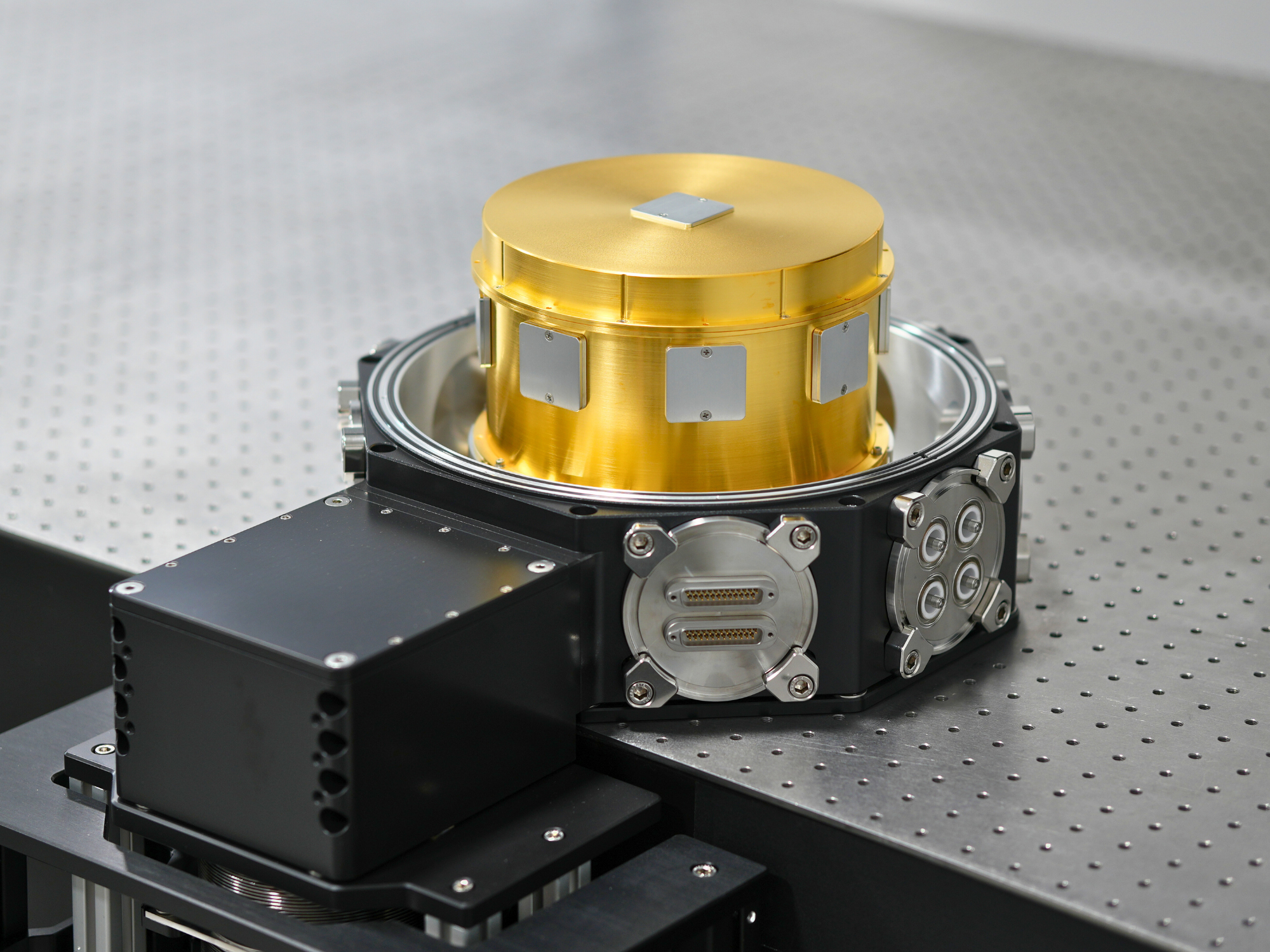

The SideKick relocates the cryocooler directly to the floor, removing energy and freeing up optical table
ABOUT
SYSTEM FEATURES
Low-Vibrations, Low-Accelerations
Utilizing many novel vibration isolation techniques.
Such systems have been designed, built, and delivered to enable research in demanding applications such as Scanning Probe Microscopy (SPM), Atomic Force Microscopy (AFM), and time-sensitive micro cavity research
High cooling power
Thanks to its off-table cold head architecture and thermal-link technology, you can use high-power cold heads without injecting noise into your experimental setup. Up to 300 mW @ 4.2 K.
UHV Performance
The SideKick boast industry leading vacuum performan,ce through a unique differentially pumped double seal design that ensure pristine UHV environment. You can run your experiment for months with no drift in experimental conditions.

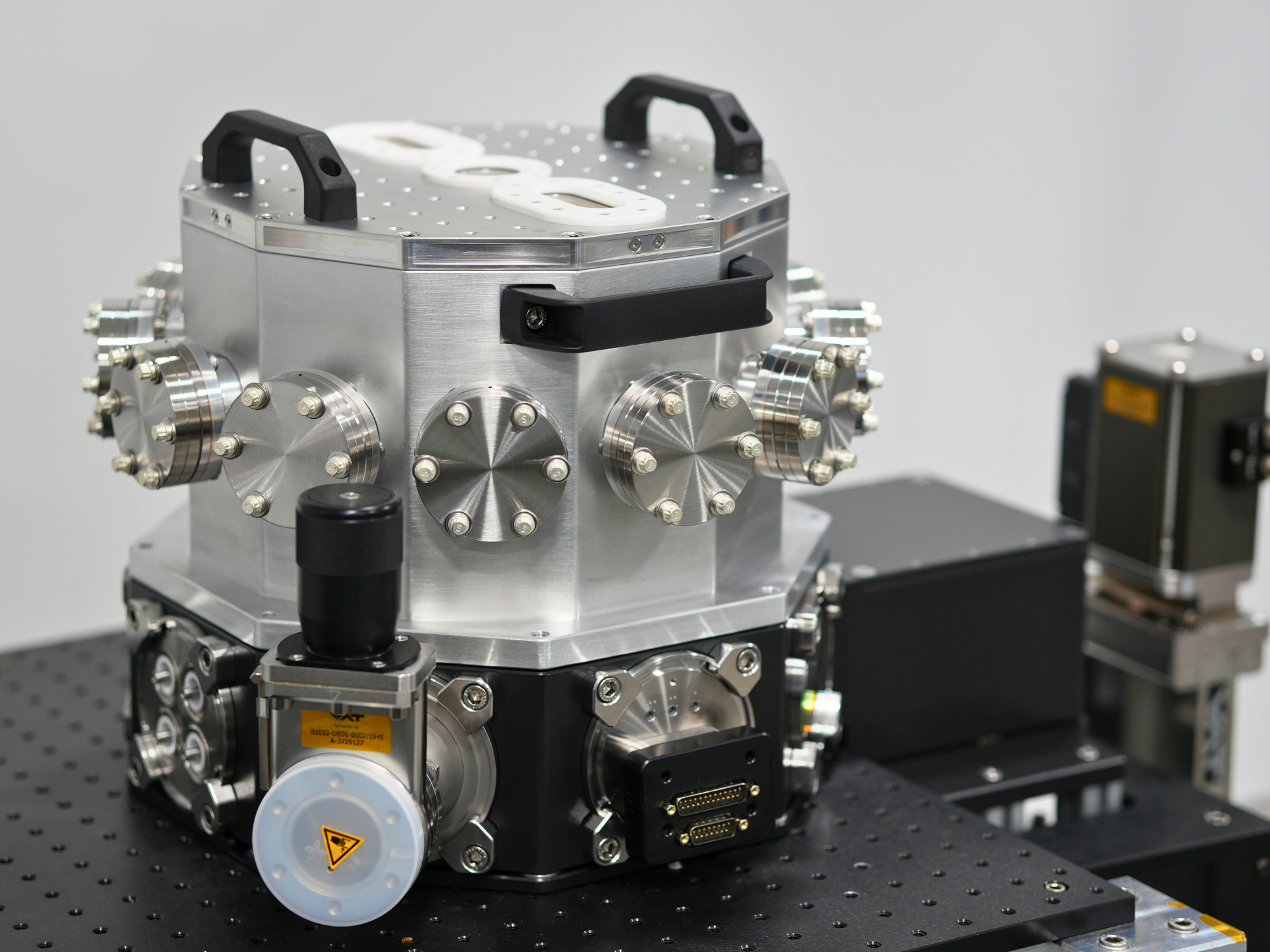

Wide sample space

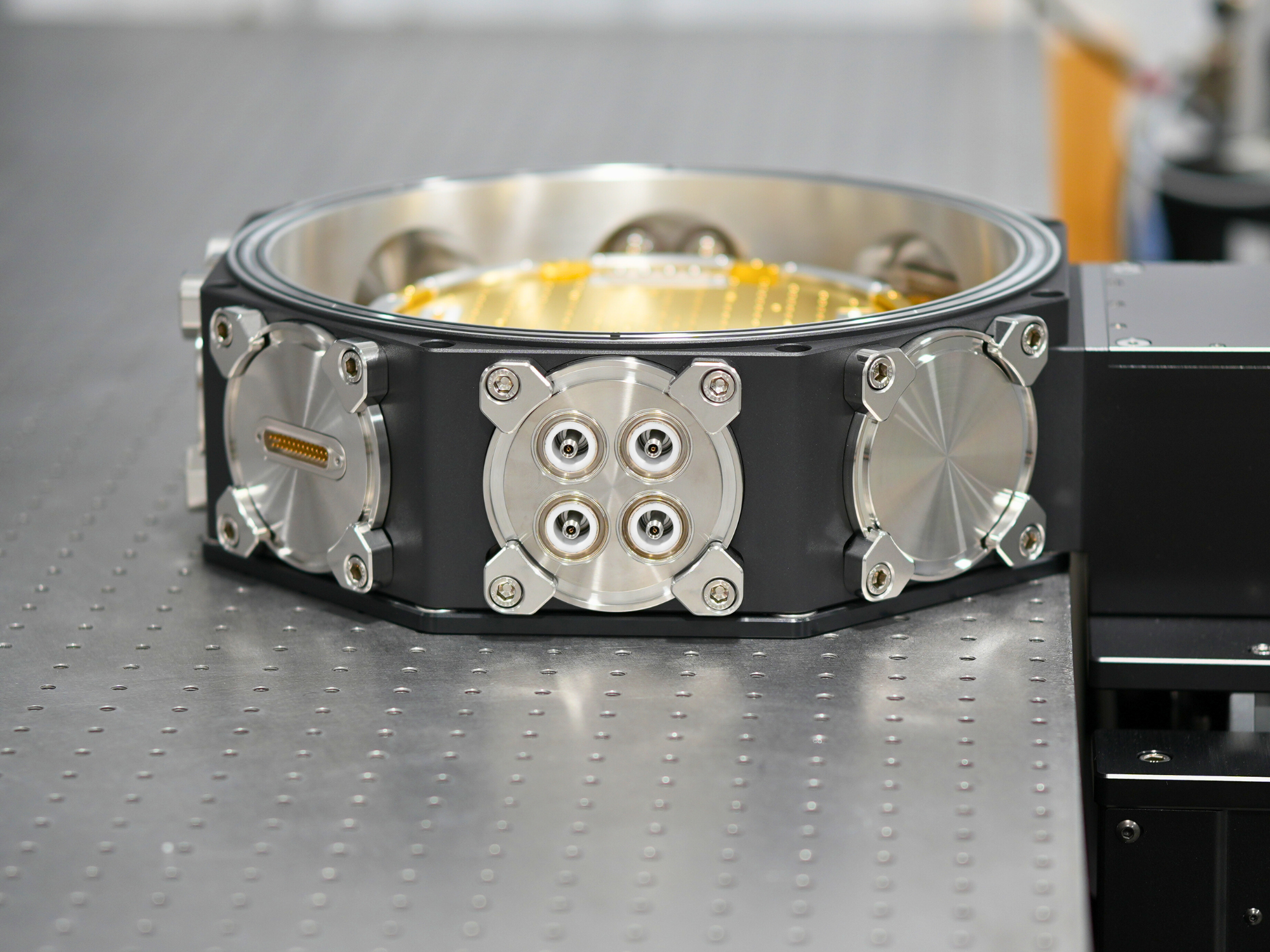

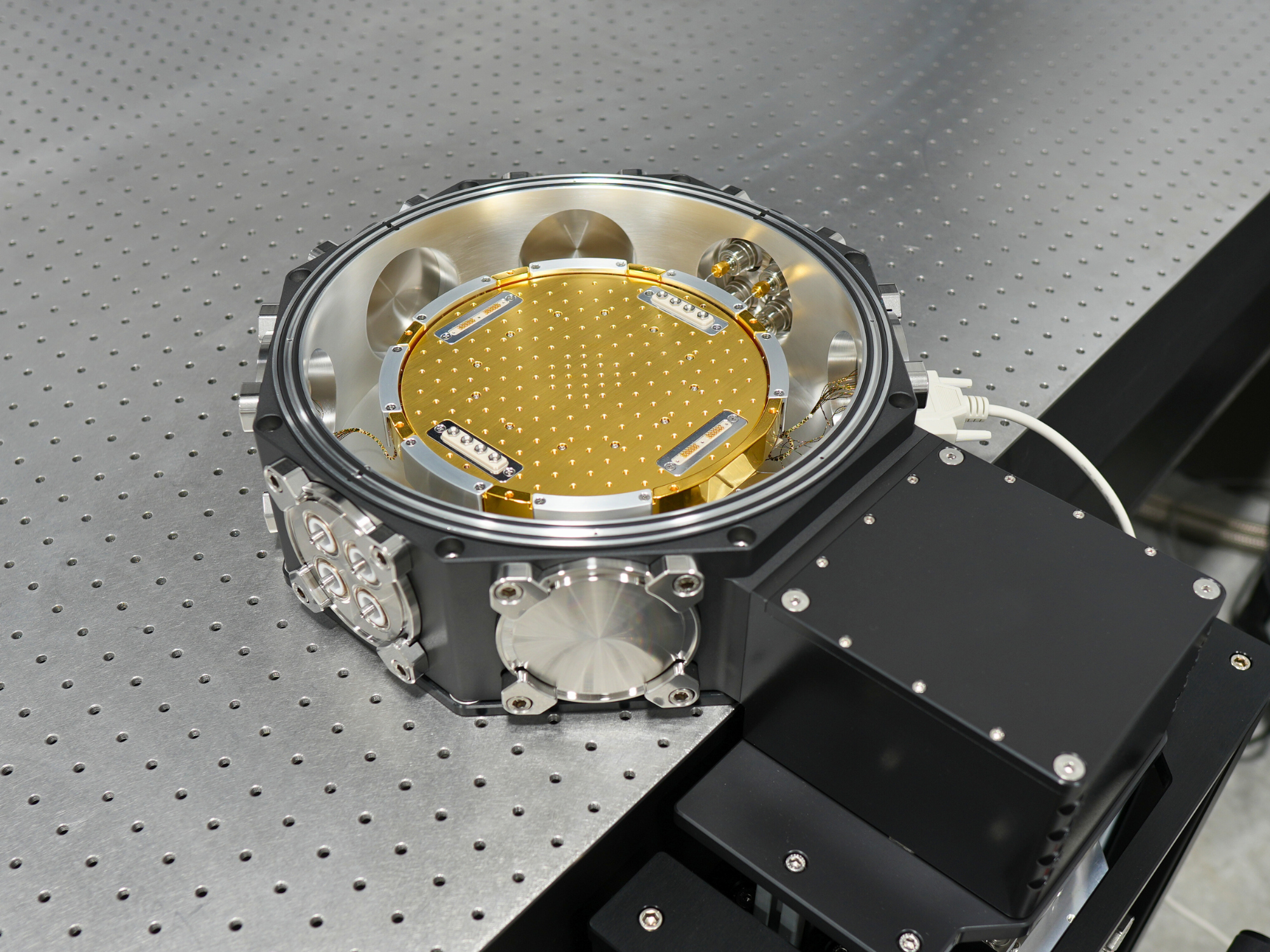

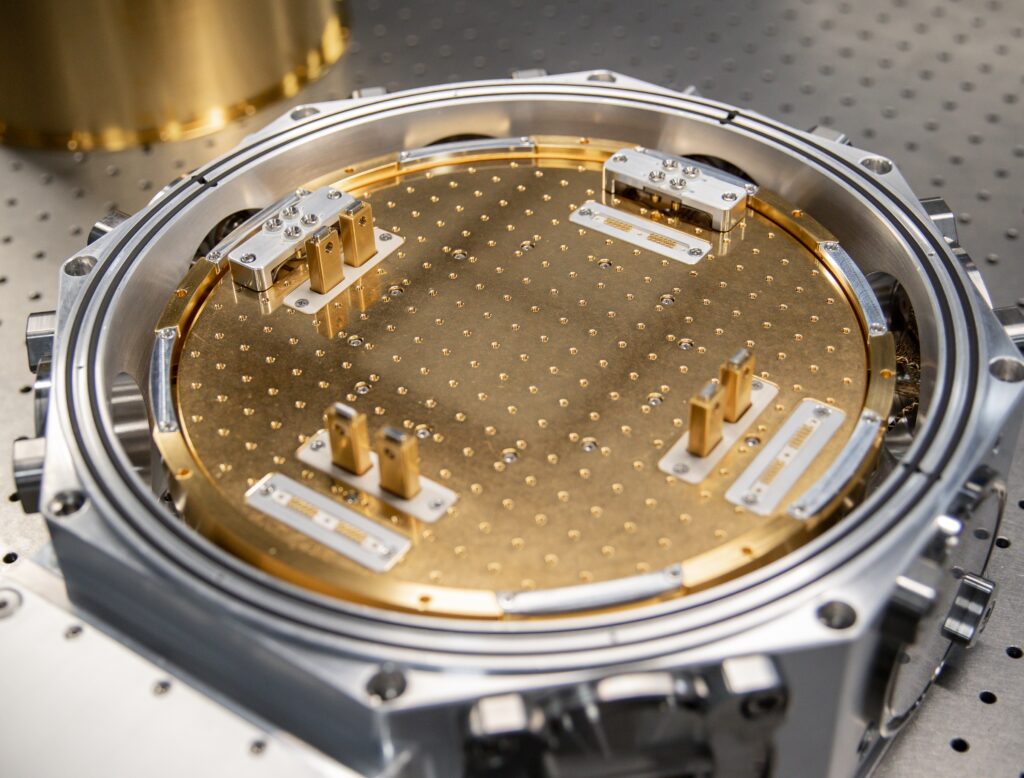

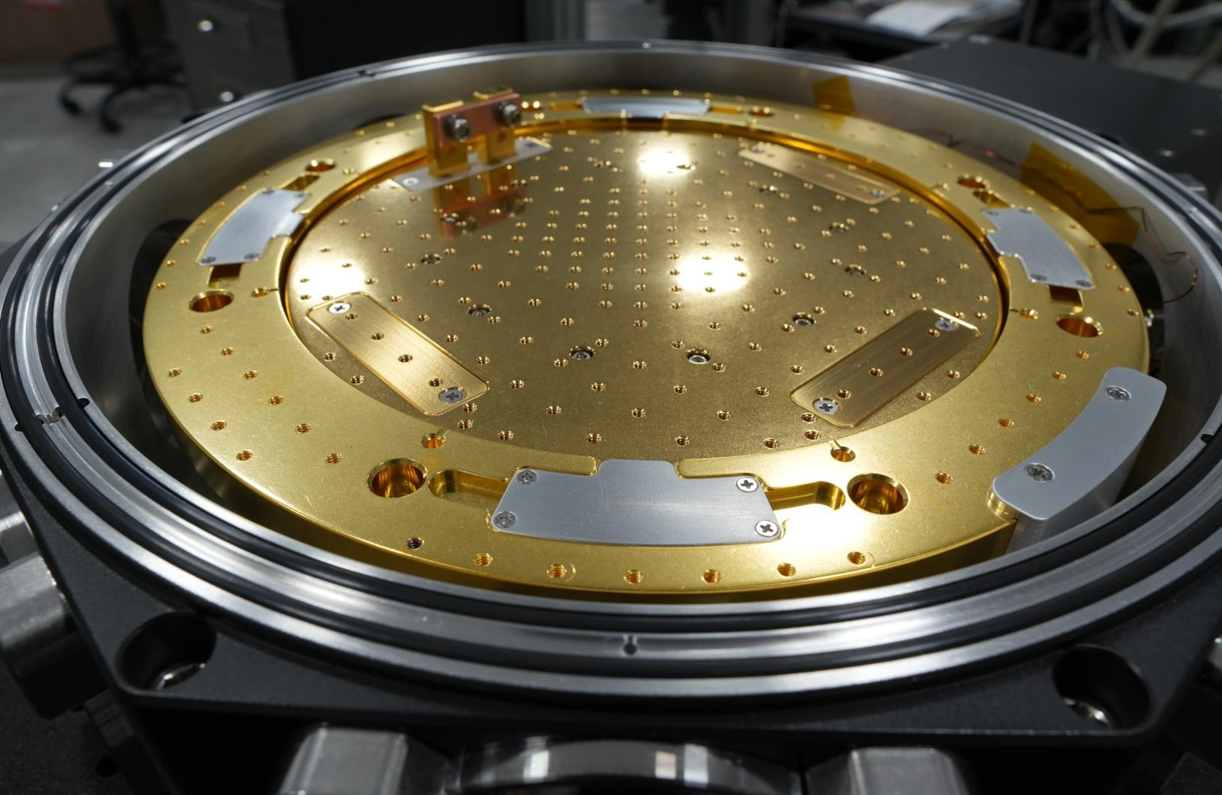

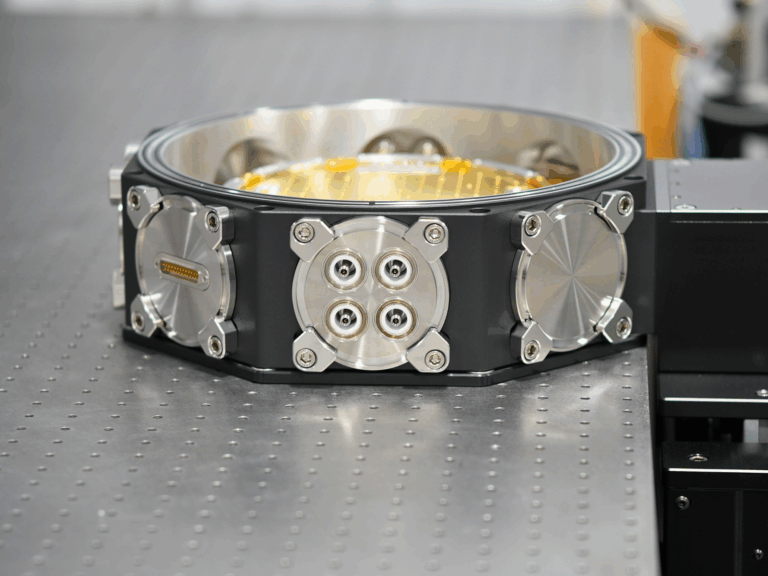

Configurable sample space up to 200 mm wide and 300 mm high. 9 optical acces as standard, and up to 40 RF and 200 DC lines. Optional all–mu-metal sample space.
Maximum Configurability

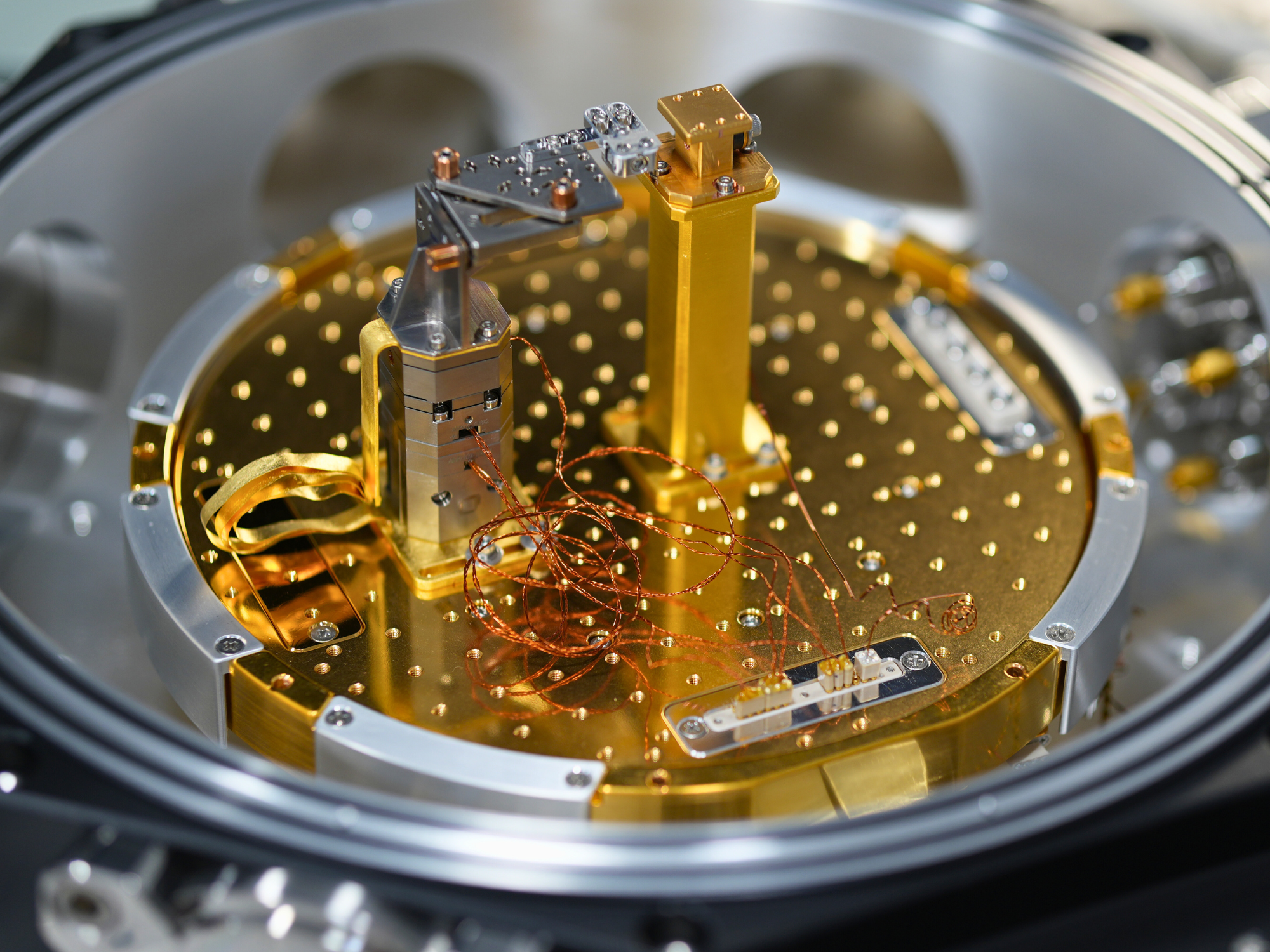

Vector magnet with 110mm bore size, Low vibration insert for SPM (0,1nm PTP<), applications with nanopositioners, diamond anvil cell, integrated baekout hardware, turnkey photonic probe station.
Ultra-long-lasting experiments

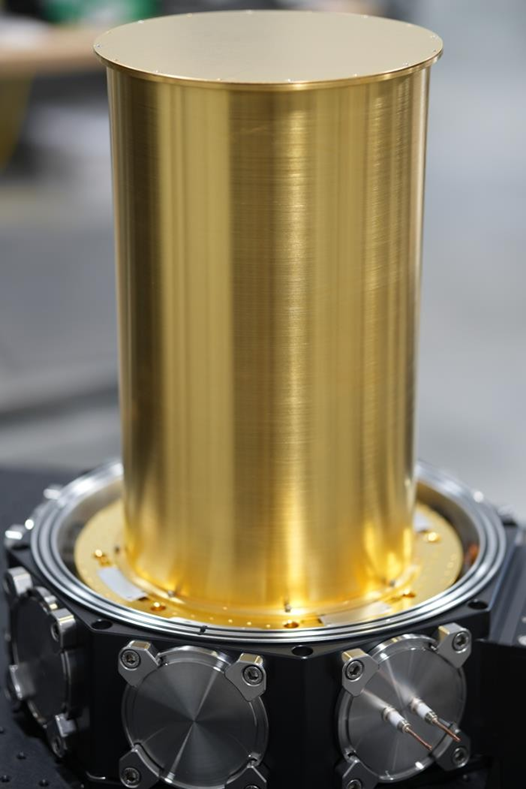

Thanks to its “chamber within a chamber” design, some of our customers have had their SideKick continuously cold for over a year, without any deterioration in experimental conditions.
PRODUCT
SPECIFICATIONS
SK100
- Base Temperature < 4K
- Cooling Power 100mW @ 5K
- Peak-to-Peak Vibrations < 15nm
- Room Temperature Vacuum, before cryopumping 1E-8 Torr (after bake) and 1E-11 Torr once cold
SK300
- Base Temperature < 3.5K
- Cooling Power 300mW @ 5K
- Peak-to-Peak Vibrations <30nm
- Room Temperature Vacuum, before cryopumping 1E-8 Torr (after bake) and 1E-11 Torr once cold
OTHER
OPTIONS

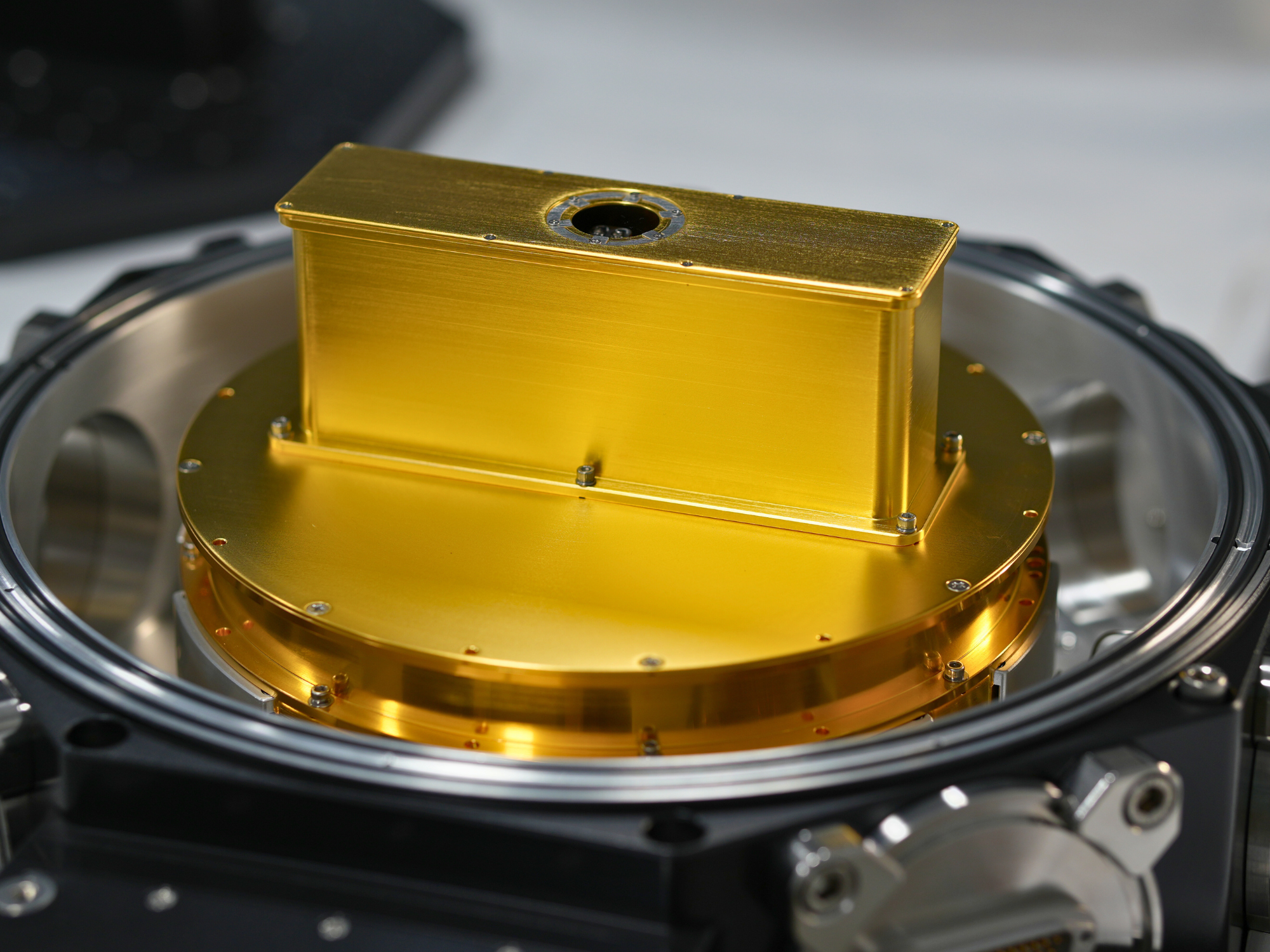

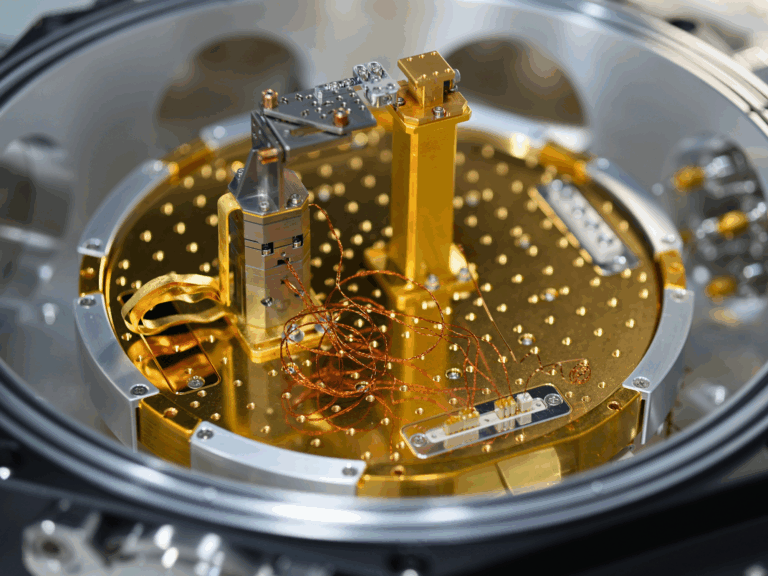

LOW VIBRATION INSERT Improve the SideKick’s already legendary low-vibration performance with an added insert that removes any additional kinetic energy. Perfect for AFM applications
HIGH CURRENT LEADS Equip your cold plate with thermally lagged high-current lugs capable of powering a superconducting magnet. Available in pairs of 2, 4, or 6

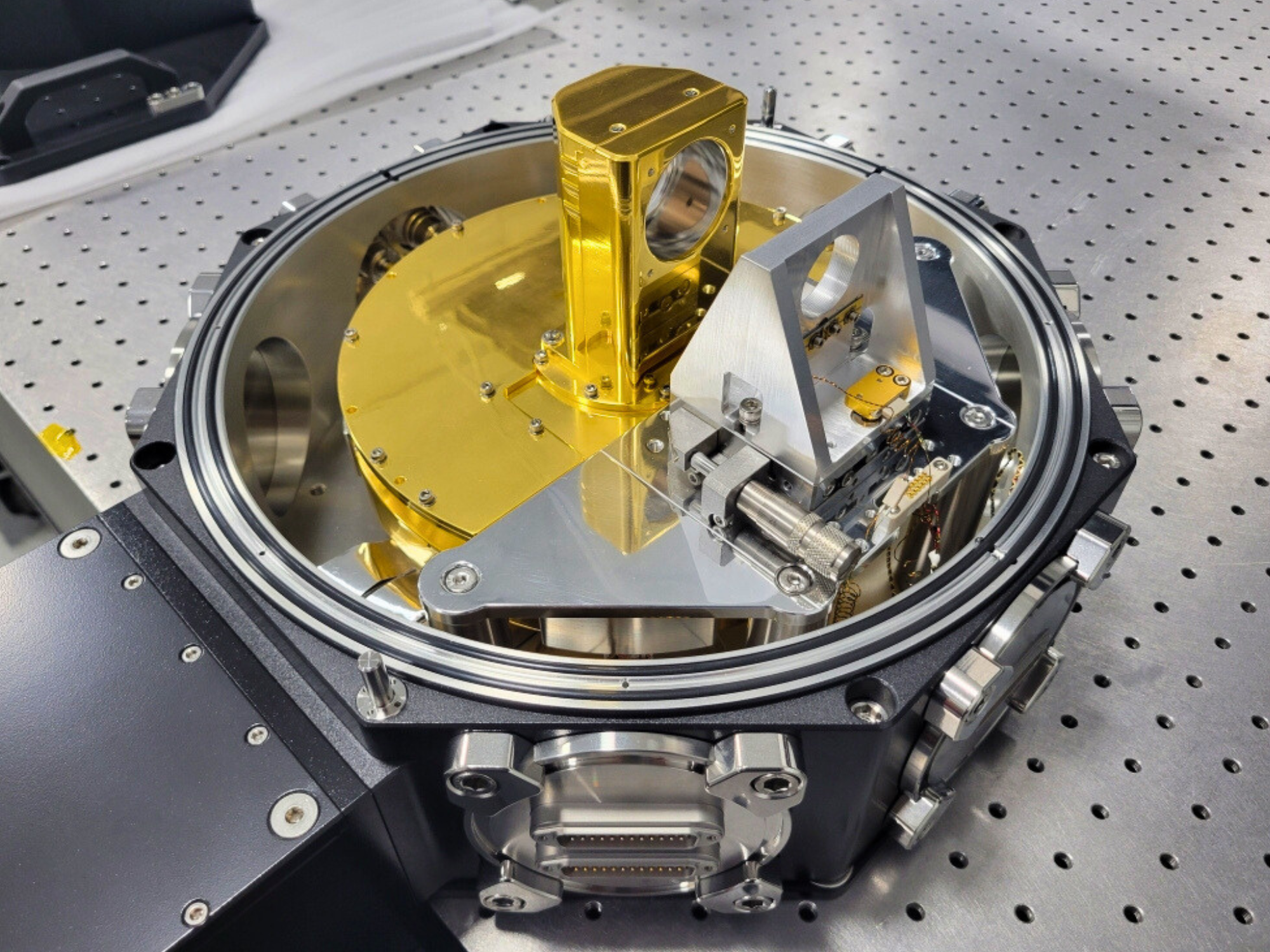

IN VACUUM OBJECTIVE ON ROOM T° STAGE Special upper housing for near ambient permanent magnet approach. User can remove vacuum chamber, radiation shield, and sample without disrupting optics.
How and Why
Cryogenic System Designs for Quantum Applications
1
Trapped ions QPU
Ultra High Vacuum(UHV)
Keeps cold without regeneration for over a year, with ultra-stable experimental conditions
9 optical access points
Numerous DC and RF lines
Low vibration levels
2
NV center
Large sample space
High colling power (300mW@5K)
Low vibrations
DAC Design
Gas Tubes option
3
Cryo-AFM
Ultra High Vacuum (UHV)
3D magnet 110mm bore size
250*350mm sample space
Low vibration Insert allowing <0,5nm p-p relative decplacement
4
THz Spintronic
Ultra High Vacuum (UHV)
3D vector magnet
Low footprint sample space for easy integration in innerted housing
5
Cold atom QPU
Ultra High Vacuum (UHV)
Keeps cold without regeneration for over a year, with ultra-stable experimental conditions
9 optical access points
Numerous DC and RF lines
Low vibration levels
reviews
they liked it
“Congrats Four Nine Design on building a stellar line of (truly) low vibration cryostats. We hard bolted this Renaissance Scientific STM to the 4K plate. Four Nine Design is one of the RARE companies that understands that 'low vibrations' doesn't just mean low displacements on their own cold finger. Accelerations are much more pertinent. Four Nine Design gets this and we love them for it.”
“We love Four Nine Design cryostats. Most cryostat vendors get their UHV for free from cryo pumping, so they take liberties with greases, and varnishes, and other swamp algae that should never be there. Not FND. They get to UHV by baking, so before any cryo pumping. The Ren-Sci UHV magnet has a natural home here. If you open your cryostat and it smells, that's a swamp vessel. Never happens with 49 cryostats. UHV clean! »
reviews
photo gallery
When we launched Qnity, Four9 was the first manufacturer that came to mind. We had spent months admiring their cryostats in our spare time, and now we are proud to represent their exceptional products.
The SideKick is the only table-top cryostat on the market that has really been designed for quantum applications. General-purpose table-top cryostats draw a vacuum at room temperature down to 1.10-3 Torr and then reach 1.10-6 Torr by cryo-pumping, i.e. solidification of residual gas in the sample chamber.
Interaction of the sample (e.g. a trapped ion or cold atom) with these solidified residual gases induces strong experimental perturbations such as qubit decoherence. The SideKick doesn’t cheat, it get to UHV (1.10-8 Torr) by backing and thanks to its patented differential pumping technology, before reaches 1.10-11 Torr by cryo-pumping.
The result is a clean vacuum for very long experiments with no residual solid matter.
All this with a very small footprint on the optical table, as the cryogenic infrastructure is out of the way.

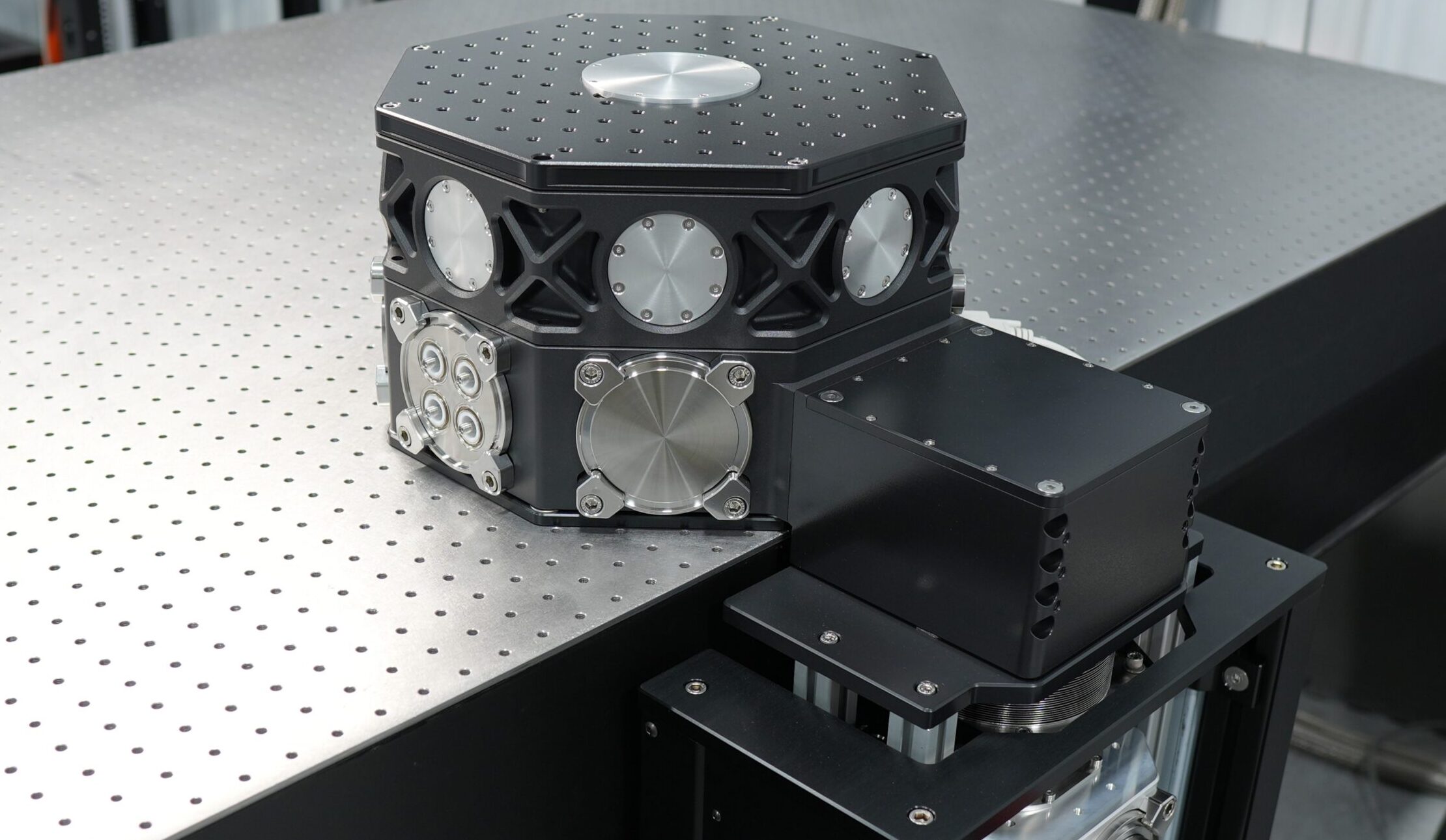

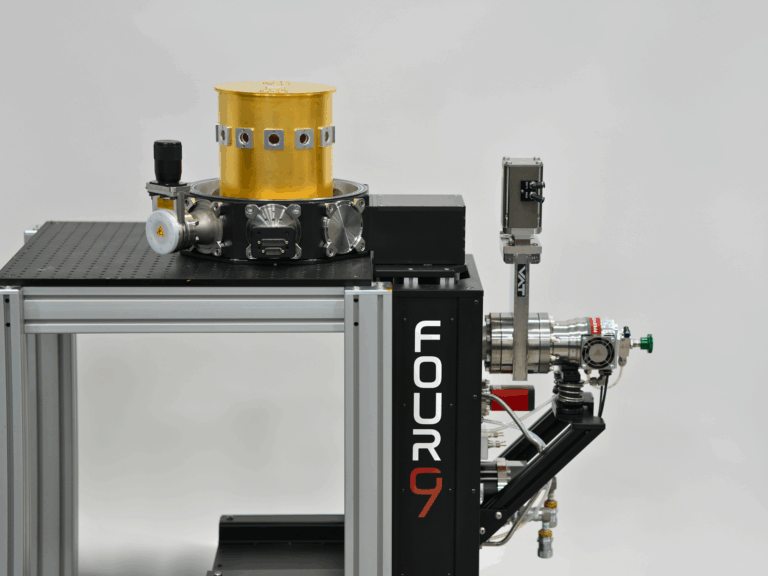

With SideKick architecture, the cold head and side tower are placed on the floor. Unwanted vibratory energy from the closed-cycle cryocooler remains away from the table. The table is free to float on pneumatic feet as it normally would.
